his bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x28mm. It has 4 wires, each phase draws 1 A at 3.5V, with holding torque 12.5Ncm (17.7oz.in).Electrical SpecificationManufacturer Part Number: 14HS11-1004SMotor Type: Bipolar StepperSte

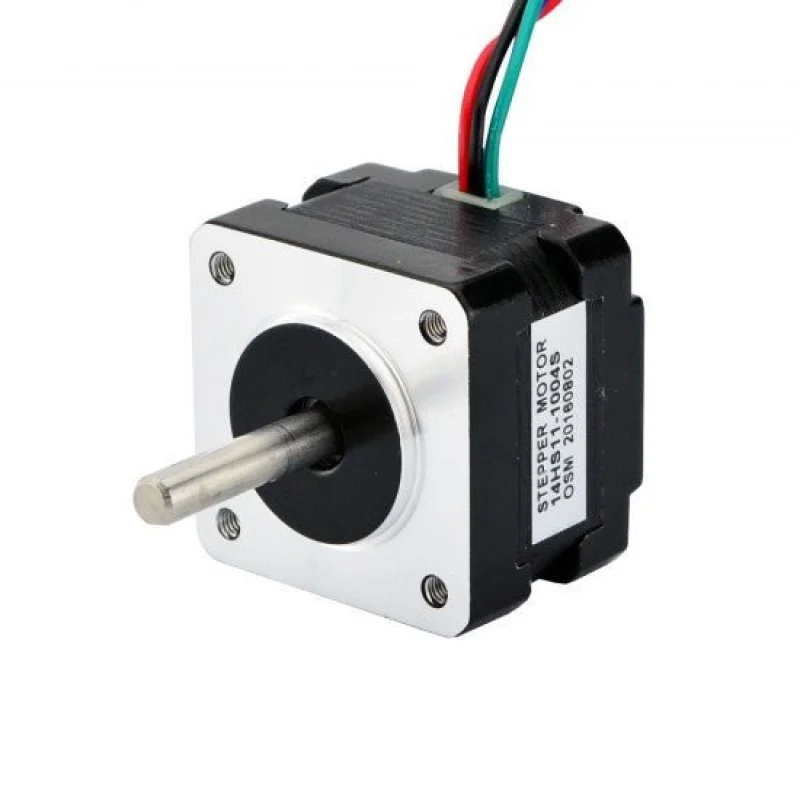

his bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x28mm. It has 4 wires, each phase draws 1 A at 3.5V, with holding torque 12.5Ncm (17.7oz.in).
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| ELECTRICAL SPECIFICATION | |
| Inductance(mH) | 3.5 |
| Phase Resistance(ohm) | 3.5 |
| Rated Current(A) | 1 |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Ncm) | 12.5 |
| Holding Torque(oz.in) | 17.7 |
| PHYSICAL SPECIFICATION | |
| IP Rating | 40 |
| Frame Size(mm) | Nema 14 (35 x 35) |
| Body Length(mm) | 28 |
| Single Shaft/Dual Shaft | Single Shaft |
| Output Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 120 |
