This Nema 17 motor part is 34mm 1.8 degree 0.4A with an integrated 200mm Tr8x8 threaded rod and a POM screw nut move along the threaded rod.Electrical SpecificationManufacturer Part Number: 17E13S0404MB-200RS(17LS13-0404E-200G)Motor Type: External Linear S

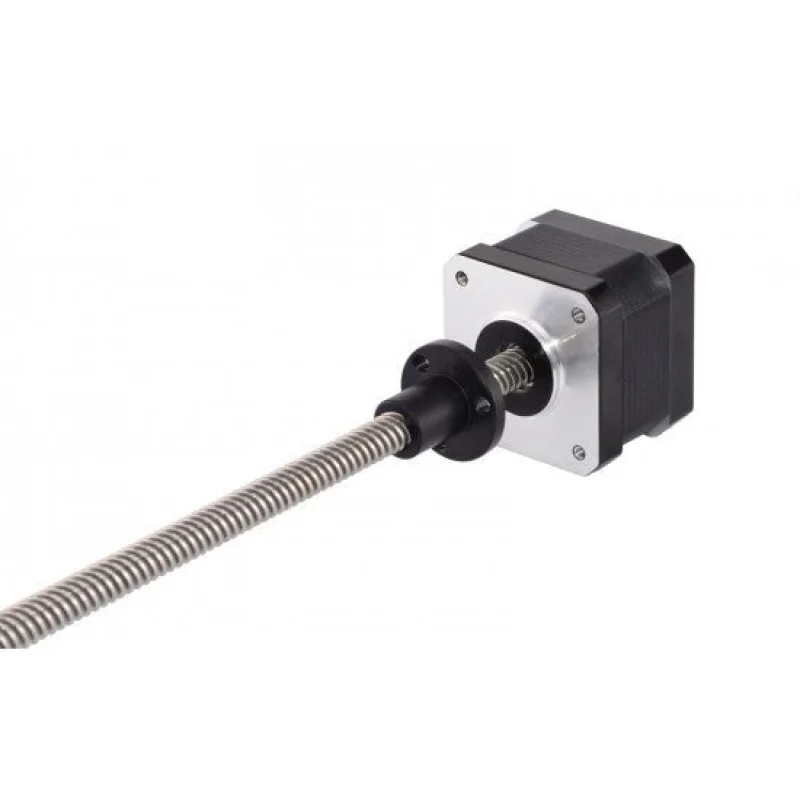

This Nema 17 motor part is 34mm 1.8 degree 0.4A with an integrated 200mm Tr8x8 threaded rod and a POM screw nut move along the threaded rod.
| A+ | A- | B+ | B- |
| Red | Gray | Yellow | Green |
| ELECTRICAL SPECIFICATION | |
| Inductance(mH) | 37 |
| Linear Motor Type | External(Acme) |
| Phase Resistance(ohm) | 30 |
| Rated Current(A) | 0.4 |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Ncm) | 26 |
| Holding Torque(oz.in) | 36.8 |
| PHYSICAL SPECIFICATION | |
| IP Rating | 40 |
| Lead Screw Diameter(mm) | 8 |
| Lead Screw Length(mm) | 200 |
| Lead Travel/Revolution(mm) | 8 |
| Lead Travel/Step(mm) | 0.04 |
| Frame Size(mm) | Nema 17 (42 x 42) |
| Body Length(mm) | 34 |
| No. of Lead | 4 |
| Lead Length(mm) | 400 |
