This filament is highly abrasive, we strongly recommend printing with Tungsten Carbide Nozzle like theUndertakerAmbrosia Filament's line of ASA-GF filament is derived from 100% Virgin Grade-A Non-Toxic pellets and long chopped Glass Fiber. Manufactured to
This filament is highly abrasive, we strongly recommend printing with Tungsten Carbide Nozzle like theUndertaker

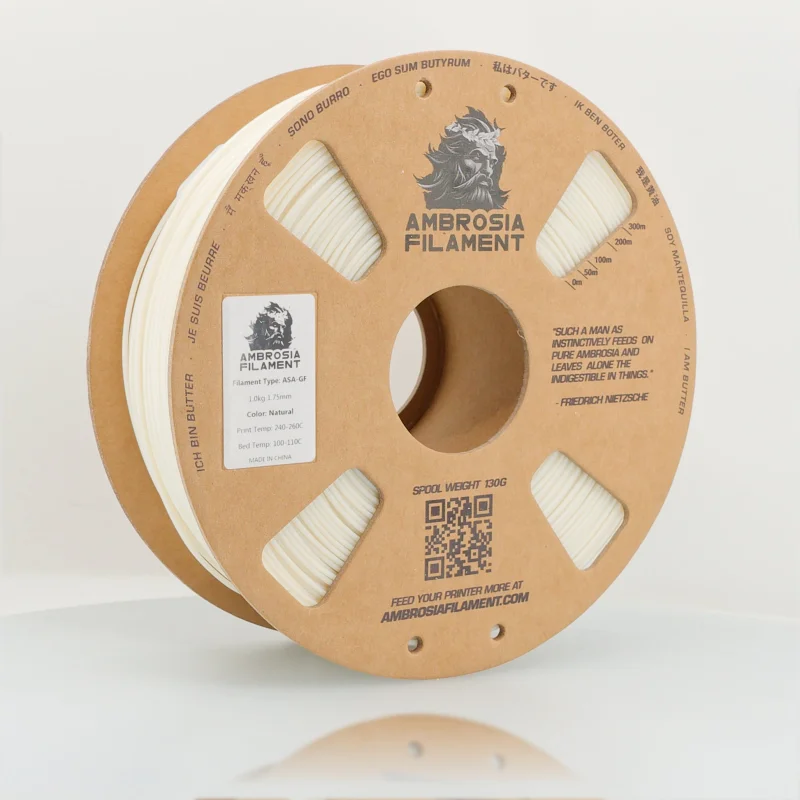

Ambrosia Filament’s line of ASA-GF filament is derived from 100% Virgin Grade-A Non-Toxic pellets and long chopped Glass Fiber. Manufactured to a tighter than standard tolerance (+/- 0.03mm) you’ll experience consistent extrusion throughout the spool. Free of additives, this filament prints like butter.
ASA is the natural successor to ABS and is great for both mechanical, functional or decorative parts. It prints well, with less warping than some other filaments, however it is highly encouraged to use an enclosure. A heated bed is required.ASA filament has high strength, impactand weather resistance (including UV), and can withstand higher temperatures than many common filaments (e.g. PLA/PETG).
Adding chopped Glass Fiber to ASA increases its stiffness, toughness, strength and heat resistance and is an excellent choice for professional parts.
The glue holding the filament spool together is rated for an environment of 70C (158F). If using a filament dryeror require the filament spool by placed in an environment exceeding this temperature, we recommend printing a spool clip (Here).
Check out our other lines of Ambrosia Filament!
| ASA | ASA-CF | ASA Sparkle | ASA Dolos | ABS+ | PETG | PLA |
|
PLA Dolos |
PC-ABS | PC-CF | TPU | ABS Matte | ASA-GF | PLA-SILK |
|
PHA |
PPS-CF |
Ambrosia Filament’s Recommended Print Settings for our ASA filament:
| Attribute | AcceptedValue(s) [Our Recommended Value] |
| Extruder Temperature | 250-280 DegreesCelsius [270] |
| Heated Bed | 100-120 Degrees Celsius [110] |
| Build Surface | PEI, Buildtak, or similar surface [Textured PEI] |
| Cooling Fan | 0-70% range varies by cooling capabilities |
| Environmental Temperatures | 40-120C [45C] |
| Soluble Support Materials | HIPS |
Technical Specifications for our ASA-GF Filament:
| Physical Properties | Test Methodology | Values |
| Density | ISO1183 | 1.12-1.13 g/cm3 |
| Melt Flow Rate (250C/2.16KG) | ISO 1133 | 4045g/10min |
| Mechanical Properties | Test Methodology | Values |
| Tensile Strength | ISO 527 | 36 MPa |
| Elongation at break | ISO 527 | 1-2% |
| Flexural Modulus | ISO 527 | 4000 MPa |
| Flexural Strength | ISO 178 | 65 MPa |
| Impact Strength | ISO 180 | 6.7KJ/m2 |
| Thermal Dynamic Properties | Test Methodology | Values |
| HDT@ 0.455 MPa(66 psi) | ISO 75 | 88C+ (TBD) |
Filament can absorb moisture easily.To prevent moisture absorption and contamination, the packing of filament should be kept sealed and in an airtight container with desiccant.
