Works withKalicoandKlipper. Comes fully assembled and includes a 6ft USB cable.

Normal: Best for Annex or StealthBurner Printers

Low Profile: Best for VzBot, RatRig, or K3 Frostbite Printers

WARNING:Requires a conductive surface or substrate on printer bed to work. Bed stacks that include oversized fixed magnets are not recommended andmay not workwith Beacon. BTT Pi and BTT Manta are known to cause damage to Beacon devices, they must be used with an inline hub or a different SBC.

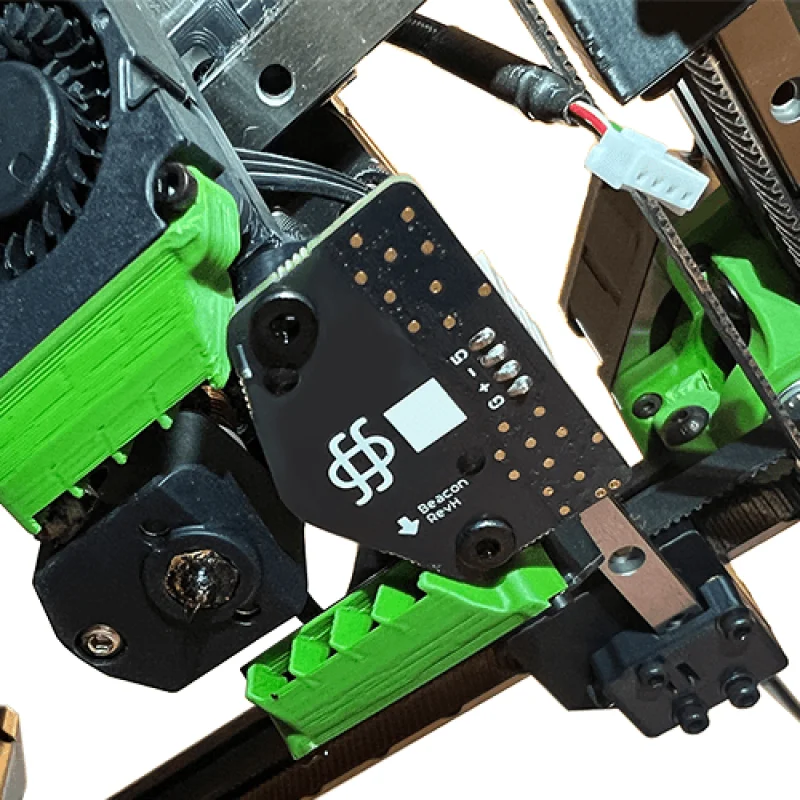

Eddy current surface scanner for 3D printers:

• Native displacement output no z motion necessary for sensing
• Scan mode mesh dense grid sampling in a matter of seconds
• Low thermal drift minimized by design, active compensation for everything else

RevH:

• High Temp Accelerometer measurement up to 100C, standby up to 115C

Printer Compatibility:

• Firmware: Klipper
• Connection: USB to Single Board Computer
• Bed: Conductive surface or substrate, 400um or thicker. Bare steel, WHAM BAM, PEI coated or laminated steel, etc. Use with beds employing large or oversized fixed magnets is not recommended.

Includes:

• 1x Custom USB cable (6ft)
• 1x Beacon board (main PCB, sensing PCB, headers, cable connector)

Variations this is important for mounting Beacon to your tool head appropriately:

• Normal: main PCB and sensing PCB are assembled flat
• Low Profile: main PCB and sensing PCB are assembled flat (as well as the cable connector)

Warranty:

• 30-day standard warranty (following the date of delivery to you)
• Using a BTT Pi or BTT Manta board with the Beacon without an inline hub voids the warranty
