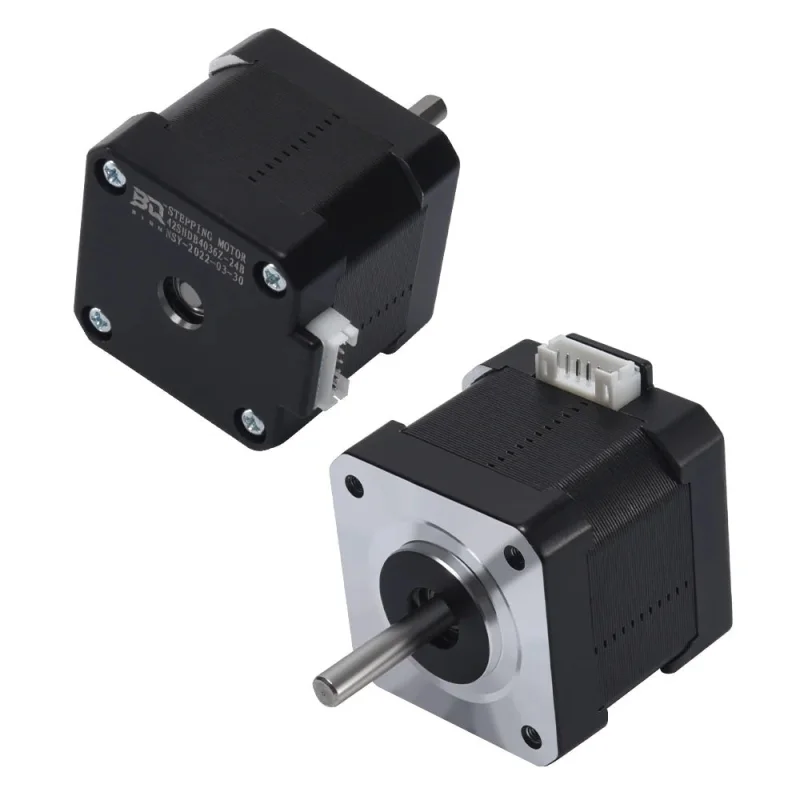

This is a great standard Nema 17 motor, insulation class F means it can be used safely in enclosed spaces. This is our standard spec for our Rook printer kits, but works great on most 3D printers. Comes with a 1m long motor harness.

Specifications

High:40mm

Shaft length:22mm

Color:Black

Phase number:2

Rated voltage:DC 3.6 Vs

Phase resistance:3.6*(1+10%) / phase

Steeringshaft extension):A-AB-B-clockwise

Maximum no-load operation frequency:1000 PPS

Electrical strength:AC600V/1mA/1S

Moment of inertia:73 g.cm

Holding torque:450mN.m

Step angle:1.8

Rated current:DC 1.0a/phase

Phase inductance1kHz:8X1+20%MH/phase

Positioning torque:25mV.m REF.

Maximum no-load starting frequency:800 PPS

Insulation resistance:100MDC 500V

Insulation class:Class F

Quality:0.28Kg REF

Please note: These are categorized as “high temperature” motors, they have a higher insulation class than standard motors and are intended to perform better at higher currents and higher ambient temperatures. Howeverrunning at or near full amperage in environments higher than 40Cwill impact longevity. We generally recommend for higher temperature environments to lower your amperage to increase the life of the motor.
