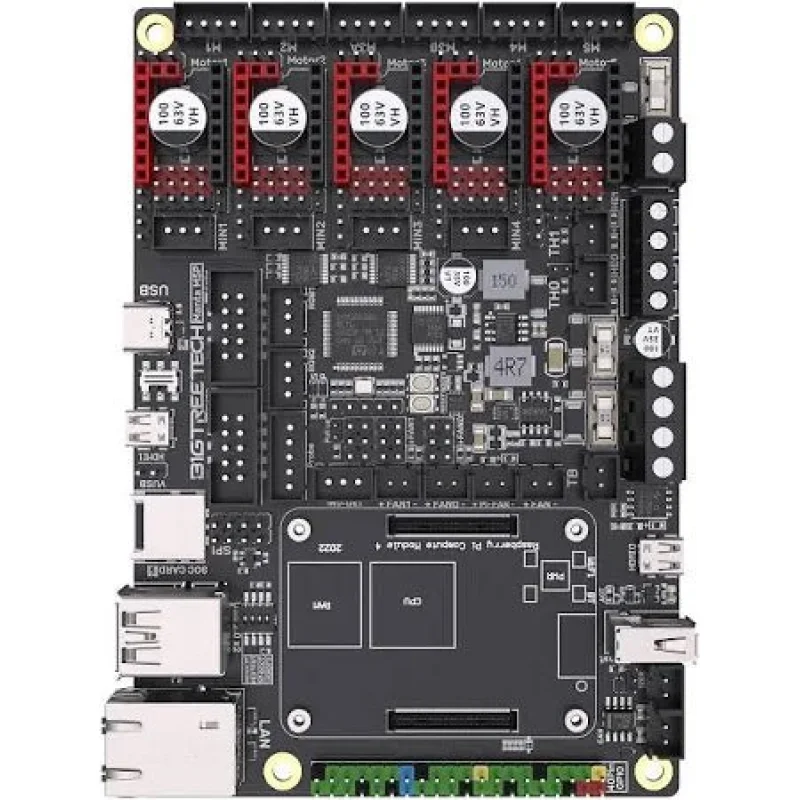

Tired of the Pi problem?MANTA M5P motherboard is a 5 driver, 32-bit printer motherboard for Klipper firmware.

We conveniently sell the CB1 module for this board, you can find it here.

The Manta M5P is a great choice for Klipper printers like the Voron V0, but also for other printers that use 5 steppers like an Ender 3 (running Klipper)

Manta M5P

• Installed with 32-bit 64MHz ARM Cortex-M0+ STM32G0B1RET6 chip, more stable and faster.
• Designed with the same connector with Raspberry Pi, giving you a confident connection with all versions of CM4,definitely, CB1. Also, a screw-reinforced installation is also avaliable.
• It has rich expansion ports, can support various expansion modules, such as BL Touch, LCD screen, RGB light, auto shutdown, etc.
• TPS5450-5A Power Chip The 5A output perfectly matches the power supply need of Raspberry Pi.
• Selectable CNC fan voltage, 5V/12V/24V.
• AddedeFuse circuit protection.It will faster disconnected on overload, and automatically reset if the overload is gone, which willgreatly reduce the motherboard burnout caused by short circuits or ignition.
• ReservedCan Bus port can be connected with EBB CAN, which will simplify the wiring and provide stronganti-interference ability.
