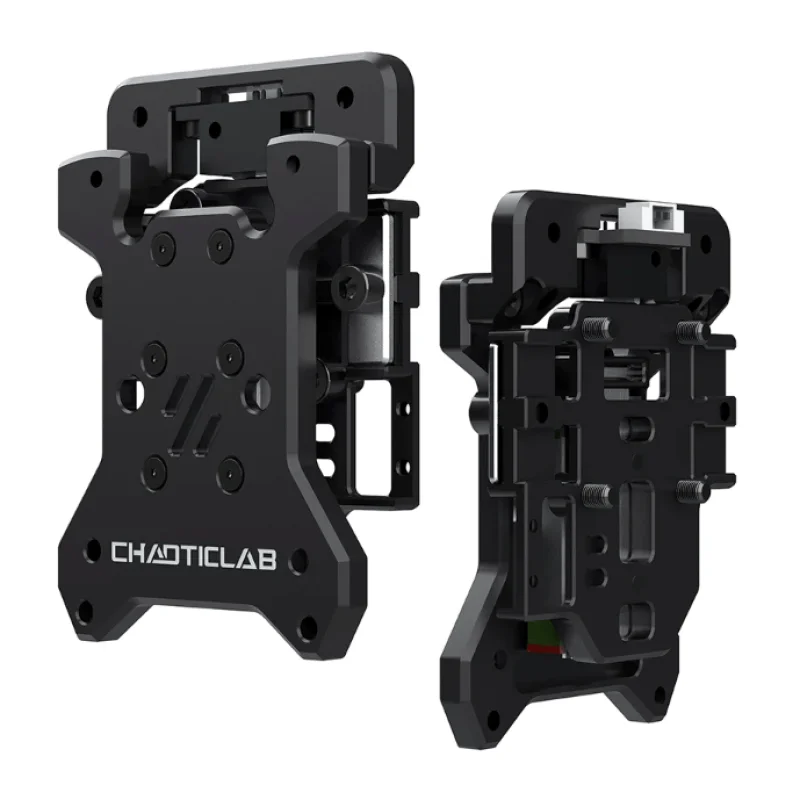

Who said installing tap was hard? This thing is pre-made, rail and all. This is CNC’d Aluminum Alloy and pretty dang light for Tap (59.8g)

V1PRODUCT IS 5V ONLY!IF YOU WANT A 5-24v OPTION CHOOSE V2!

CNC Voron Tap Specifics:

1. Product brief introduction

Ultra-high precision: 0.4m (0.0004mm)

Material: All Al6061 T6 aluminum structure. Enhance wear resistance and high-temperature resistance

Size: 45mm*13mm*68mm

Ultra Light body: 59.8g

2. Product feature

The effectivetravel of the printer will not be affected (the printed version will reduce the Y travel by 3mm or the nozzle will hit the door)

Omron D2FP-FN new optical microswitch. Lower noise, faster trigger, higher sensitivity and accuracy, and long service life.

Pre-loaded linear guide rail, stronger stability, higher sliding precision

Life span: 70,000,000+ probing

Easy installation: No need to assemble and disassemble TAP itself! (Do not disassemble by yourself, otherwise, the product may be damaged!)

Suitable for: VORON V2.4 R1&R2and VORON Trident printers

Not suitable for: Switchwire, V1.8, Legacy VORON V0. Designed for a single MGN12 style carriage.

V1 vs V2 comparison:

The product is as light as 68g (including mounting screws), reducing the impact on the extrusion head
Effect of weight
Brand new magnetic component to provide movement limit
New status lights
Supports 5-24V wide voltage, making power supply more convenient
New OMRON proximity switch, more stable
New X-axis fixed position, more stable installation
Pre-installed mounting screws make installation more user-friendly

Product File:

CNC Voron Tap Build Guide
