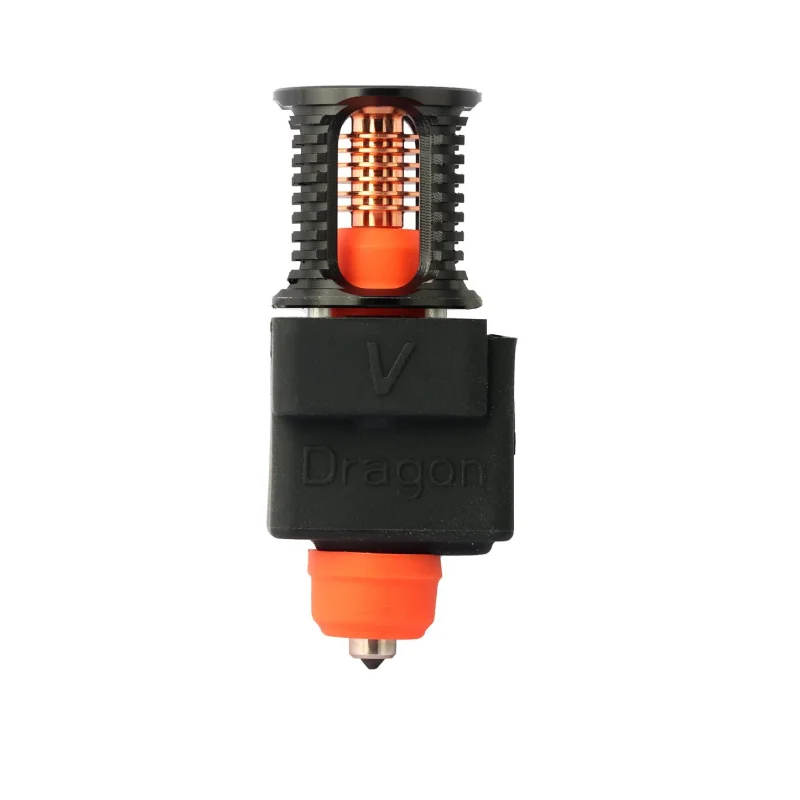

The popular dragon, new and improved – the ACE Volcano improves on the incredible performance of the original dragon with the signature one handed nozzle changes with faster heating times and even more flow. The Volcano version adds considerably higher flow rates with a meltzone extender and uses a more durable 6×20 heater cartridge over the standard Dragon ACE.

To prevent print abrasive filaments from quickly wearing through thin-walled stainless steel tubes, the Dragon Ace heat break is made of titanium alloy, which is thicker and more abrasion-resistant for longer life while still maintaining excellent thermal breaking and mechanical strength.

Compatibility:

Compatible with most tool heads designed for V6 or Dragon/Dragon UHFCompatible nozzles: V6 style with 7.5MM Thread lengthAlthough the overall length of Ace is shorter than the Orginal , with the included spacer it still fits onto the tool head originally designed for the Orginal Dragon. Dragon Ace provides adapters to fit the V6 Groove Mount, which can be mounted anywhere a V6 volcano hotend was originally designed to be mounted. The heating section of Dragon Ace is 8.5MM longer than that of Orginal Dragon. There may be a mismatch in the height of the part cooling fan outlet and probe. If you can find parts specifically for a volcano heating block , that’s no problem at all.

Documentation link:

https://drive.google.com/drive/folders/11QHxG745J42ZzM7vk0ET1ysG6nBwzrUO?usp=sharing
