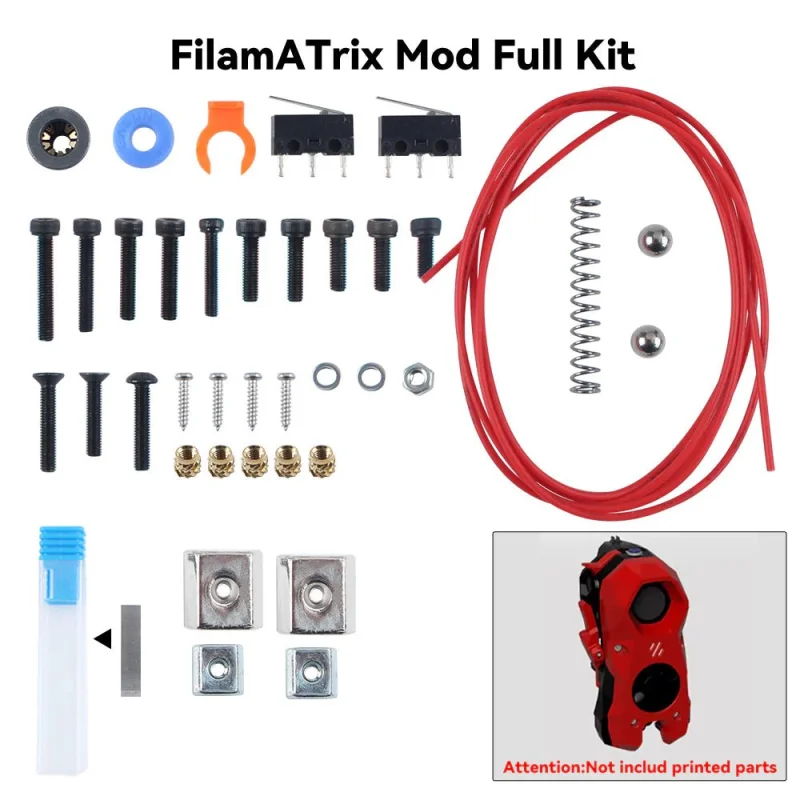

From GitHub:FilamATrix Mod FilamATrix is a Stealthburner toolhead filament cutting mod created specifically for the ArmoredTurtle BoxTurtleproject. It is an adaptation and cleanup of the Filametrix and G2E-Filametrix mods. Note the slightly different spell
From GitHub:
FilamATrix is a Stealthburner toolhead filament cutting mod created specifically for the ArmoredTurtle BoxTurtleproject. It is an adaptation and cleanup of the Filametrix and G2E-Filametrix mods. Note the slightly different spelling change – all other documentation within this repository refer to this specific modification.
However, use of BoxTurtle/AFC are not required – this mod can be used anywhere the upstream Filametrix/G2E-Filametrix are).
FilamATrix modifies the VORON Design StealthBurner hotend and Clockwork 2 Extruder or Galileo 2 Extruder to support a kinematic-actuated cutting blade for cleaner, more reliable automated filament changes that also eliminates the need for tip forming.
FilamATrix consolidates the CAD for Filametrix and G2E-Filametrix into a single file and provides a reorganized repository with a clear structure of what files are needed to print. While both extruders are provided as an option, our recommendation is to use Clockwork 2 – we find users have had the most success with it. The assembly instructions and manual only cover Clockwork 2.
Clockwork 2 supports two toolhead sensors, but some users may only be able to support one due to limited GPIO on the toolhead, so our default recommendation is just the pre-extruder sensor.
The print files for FilamATrix have been modified from the original projects with the following changes:
Hotend mounts/Printheads now use M3 threaded heat insert (instead of a M3 nut) for simpler installation and maintenance. Many thanks to hartk for this idea!
On Clockwork 2, there is an increased depth for the PTFE tubing to better help guide the filament towards the extruder gears and make insertion less position dependent.
Cutting arm has been modified to support a full length M2.5×16 FHCS.
Inclusion of the Beefy Depressor mount as the default.
The following hotends are natively supported on this repository:
