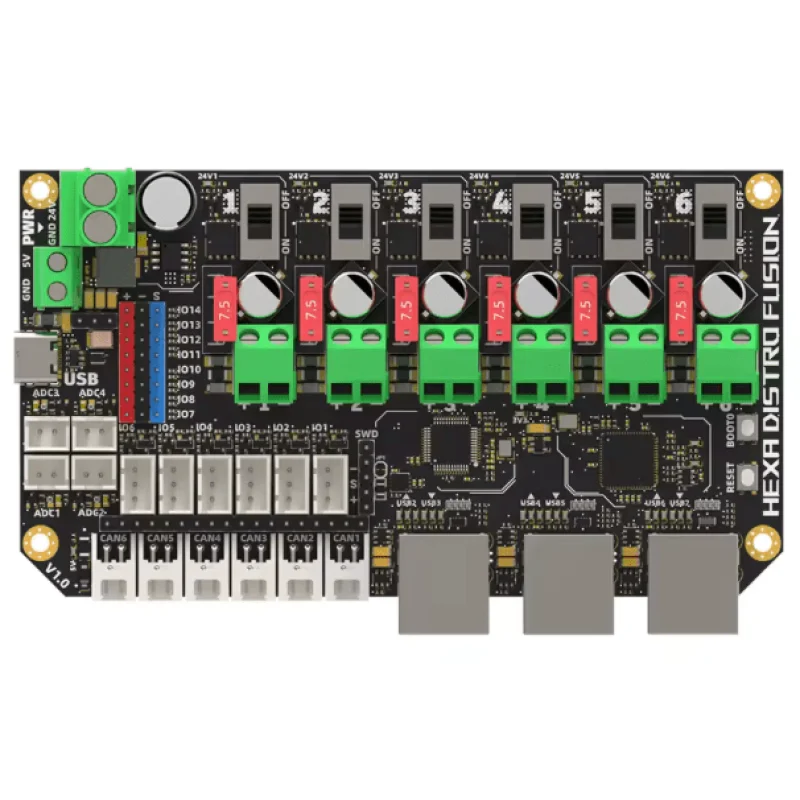

The HEXA DISTRO FUSION is a comprehensive hub specifically designed for 3D printer toolchangers. It offers 6-channel CANBUS expansion, 6-channel USB 2.0 expansion, and six channels of 7.5A DC power distribution. Equipped with multiple flexibly configurable IO ports, it supports a variety of peripherals such as RGB lights, fans, proximity switches, and Hall sensors, providing maximum convenience for the Toolchanger mode.

2. Features

• 6 x USB2.0 based on USB2517
• 6 x CAN 2.0 connectors based on STM32F072CB
• 6 x 24V 7.5A Max power distribution with 2 controllable methods
• 4 x ADC input, for ADC sensors such as thermistors
• 8 x general IO
• 6 x 24V max I/O with power control for RGB/FAN/Proximity switches, etc
• Onboard 24V to 5V@3A DC-DC circuit USB working status LED indicators
• Onboard RESET and BOOT0 buttons for easy firmware update

For more information check out the wiki.
