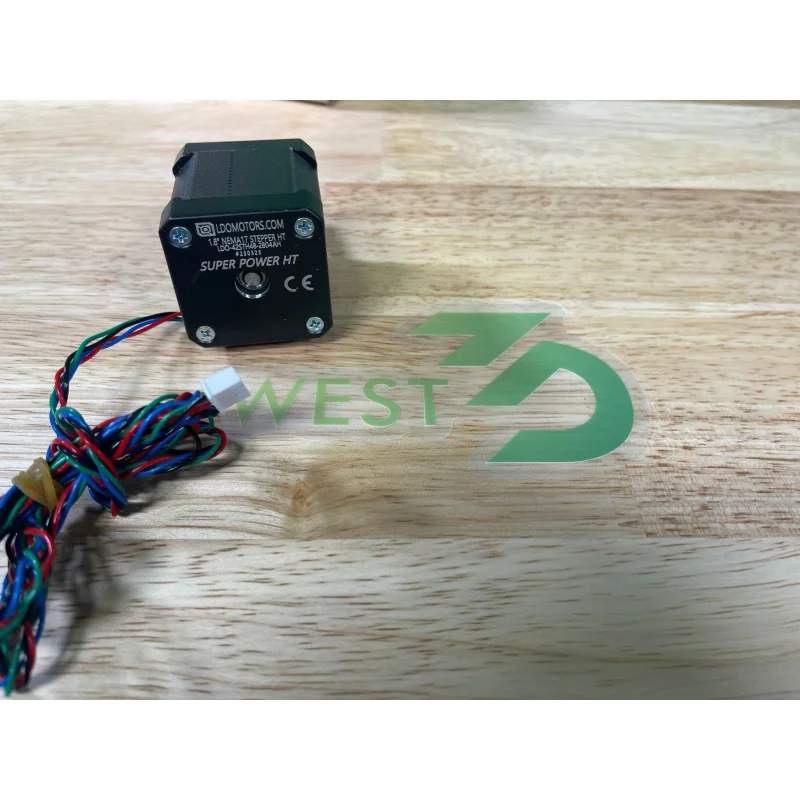

This is a super big boy, made for the highest speed of speedy applications. This motor comes with a 1 meter wire terminated with a 4 pin JST-XH connector. We carry these in AH (high temp) and AC (standard class).

This is an evolution of the 2504 speedy motors, with greater holding torque and a higher power rating (2.8 vs 2.5a).

• NEMA 17.
• 1.8 Step Angle.
• 200 Steps Per Revolution.
• 2.8 Amp
• 420mN-mHolding Torque.
• 48mm Body.
• 24mm Output Shaft (5mm diameter) (S55 version has a 55mm Output Shaft)

Please note: These are categorized as “high temperature” motors, they have a higher insulation class than standard motors and are intended to perform better at higher currents and higher ambient temperatures. Howeverrunning at or near full amperage in environments higher than 40Cwill impact longevity. We generally recommend for higher temperature environments to lower your amperage to increase the life of the motor.

Technical Specifications can be viewed here.
