Product Description

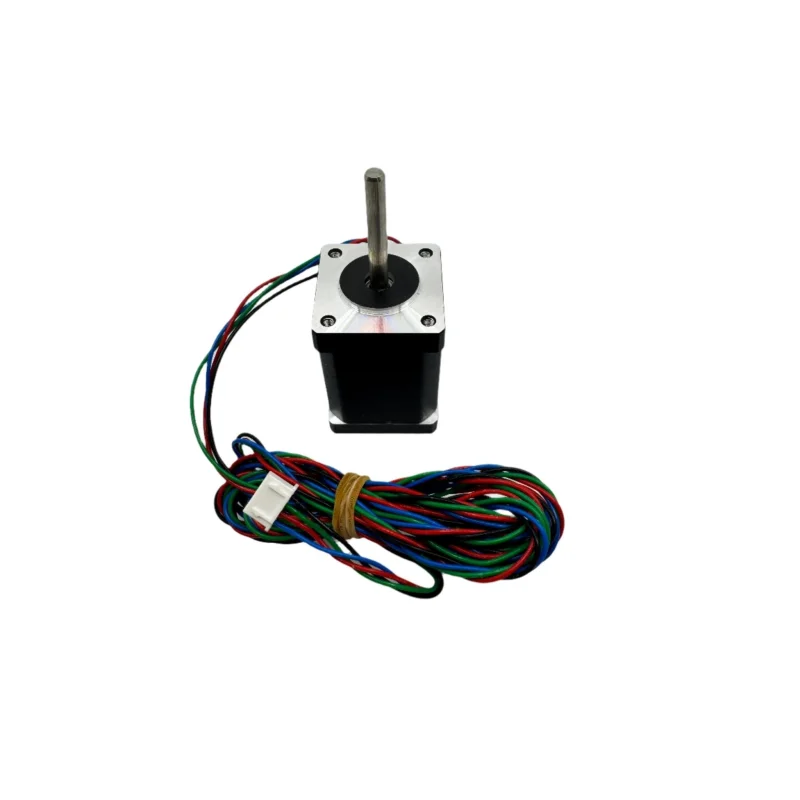

The LDO-35STH52-2004(S35) NEMA 14 stepper motor is a high-performance, compact motor designed for precision motion control applications. With its robust construction and precise step angle, this motor delivers reliable and accurate performance in a variety of industries. This version uses a 35mm shaft.

Key Specifications

• Frame Size: NEMA 14 (35mm)
• Phase: 2-Phase Bipolar
• Step Angle: 1.8 5%
• Rated Current: 2A/Phase
• Holding Torque: 0.4 Nm
• Resistance: 1.34 Ohms 10% @ 20C
• Inductance: 2.1 mH
• Rotor Inertia: 40 gcm
• Shaft: Single Front Shaft
• Shaft Length: 35mm
• Front Shaft Flat Length: 30mm
• Front Shaft Diameter: 5mm
• Connection: Plug for JST-XHP-4, Black
• Terminal Number: 4
• Wire Harness Length: 200010mm, AWG24, UL1332
• Insulation Class: H (180C)

Benefits

• High Torque: Delivers strong holding torque for precise positioning.
• High Resolution: 1.8 step angle for fine movement control.
• Temperature Resistance: Operates reliably in various temperature environments.
• Low Inertia: Enables rapid acceleration and deceleration.
• Compact Design: Ideal for space-constrained applications.
• Durable Construction: Ensures long-lasting performance.

Applications

• 3D Printing
• CNC Machining
• Robotics
• Medical Equipment
• Automation Systems

Note: For optimal performance, it is recommended to use a suitable stepper motor driver and power supply.
