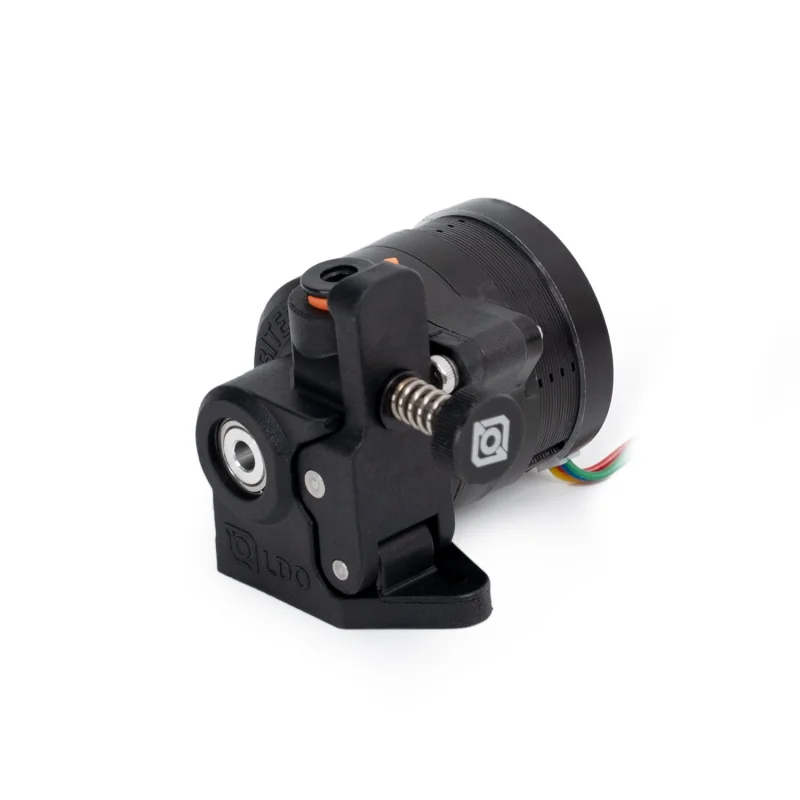

High precision direct drive extruder designed by Dr. Lorincz Rober in cooperation with LDO Motors. The LDO Orbiter V2.5 uses a new spider shaft with a knurled surface which results in much greater eccentricity (20-30 m vs 50-140 m) resulting in consistently better performance.

In addition, the new wide cut gears bring a new innovative design with a flat bottom cut, eliminates extrusion rate changes based on your filament position by providing a uniform drive gear diameter in all cases. Lastly, these gears now use a RNC nano coated gears with increased hardness (HRC60+) over the traditional gears provided by the Orbiter V2.0.

Complete kit includes:

• Orbiter V2.5
• LDO 36STH20-1004AHG(XH) Pancake Motor (when selected with motor variant, coming soon)
• Adapter Cable
• Mounting Hardware
• Hex Wrench
• Basic Configuration Instructions

Features:

• RNC wide cut nano-coated dual filament drive gears
• 11mm drive gears
• Precision knurled spider shaft
• Weighs ~135 grams
• Smaller dimensions compared to Orbiter V1.5 (11.6% shorter)
• High temperature resistant injected housings – GPA12
• Machined PEEK secondary drive gear sleeve
• Stainless steel filament exit guide for better TPU printing experience and wear resistance for abrasive filaments

Upgrade kit includes all new hardware to convert an Orbiter V2.0 to a V2.5
