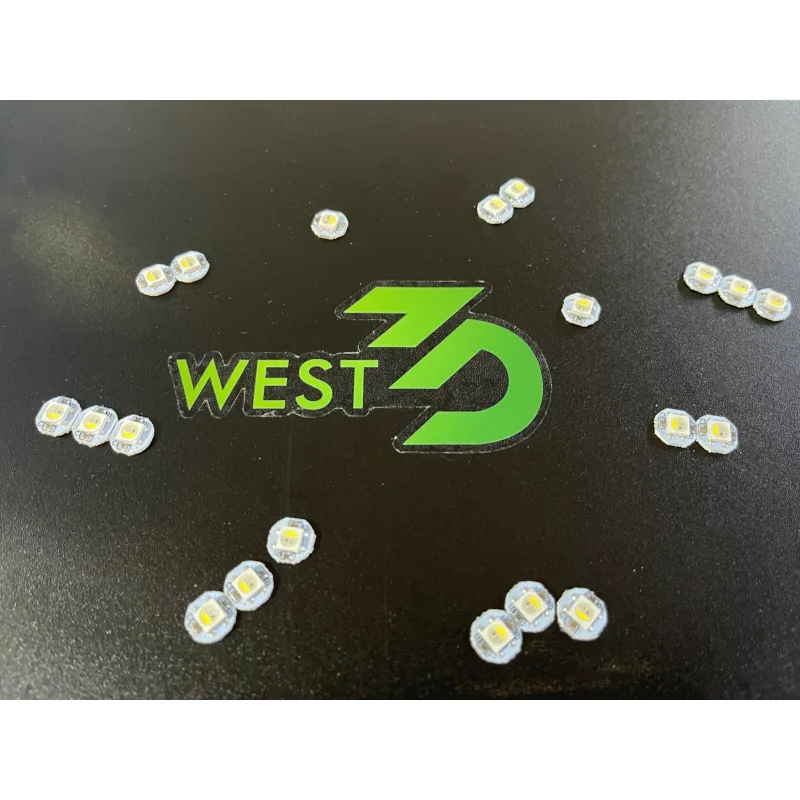

Item name: SK6812 RGBW

IC type: 1 IC drive 1 led chip ( build in IC ) (The default is the chips with IC integration)

R: RED Wavelength: 620-630NM

G: GREEN Wavelength: 515-525NM

B: BLUE Wavelength: 460-470NM

W: Cool White 6000-7000k

Description: Top SMD Type 0.2 Watt

PIN configuration:

NO 1, Symbol: VDD Function description: Power supply LED.

NO 2, Symbol: DOUT Function description: Control data signal output.

NO 3, Symbol: VSS Function description: Ground.

NO 4, Symbol: DIN Function description: Control data signal input.

Absolute Maximum Ratings: ( Ta=25,VSS=0V)

Power supply voltage Symbol: VDD Range: +3.5V – +5.5V

Logic input voltage Symbol: V(IN) Range: -0.5 VDD+0.5V

Working temperature Symbol: Topt Range:-40 – +85

Storage temperature Symbol: Tstg Range: -50 – +150

ESD pressure Symbol: V(ESD) Range: 4KV
