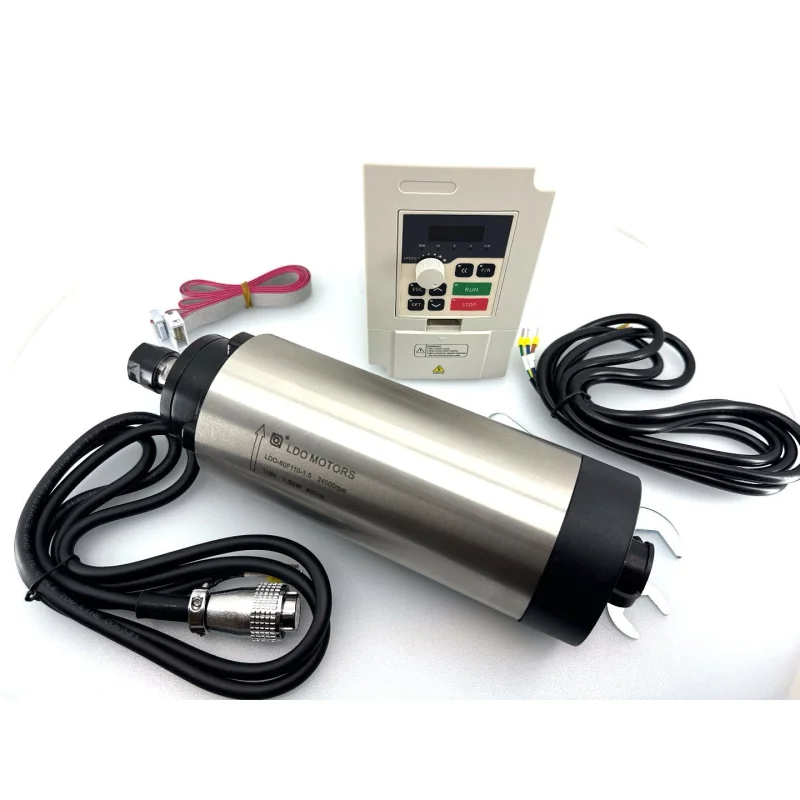

This is a listing for a Spindle and/or Inverter commonly used for CNC machines. Both of these are provided by LDO Motors for West3D (used for the Milo v1.5 we have here.)The combination of a110v spindle and VFD is an air cooled 1.5Kw option able to be run
This is a listing for a Spindle and/or Inverter commonly used for CNC machines. Both of these are provided by LDO Motors for West3D (used for the Milo v1.5 we have here.)
The combination of a110v spindle and VFD is an air cooled 1.5Kw option able to be run on most American standard wall outlets. (technical specifications being uploaded soon.)
220v spindle technical specifications:
| Model | LDO-GDZ-80F-1.5 |
| Size | 80x195mm |
| Voltage | 220V |
| Current | 8A |
| Frequency | 400Hz |
| Performance | 1.5kW |
| Rotation speed | 24 000 rpm |
| Max. Torque | 0.59Nm |
| Collet | ER16 |
| Tension clamp | 1-10mm |
| Incl. | Air cooling |
