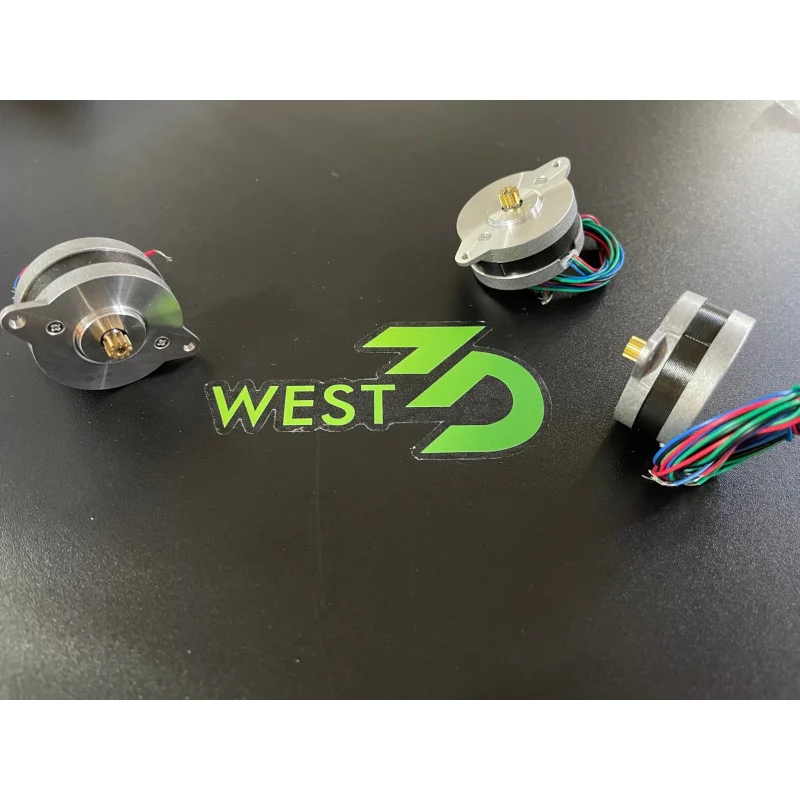

This is the pancake motor used on the LDO orbiter / Galileo, the V01 mini-afterburner and the Stealthburner.

Model: 14HR07-1004VRN

Electrical Specification

• Manufacturer Part Number: 14HR07-1004VRN
• Motor Type: Bipolar Stepper
• Step Angle: 0.9 deg
• Holding Torque: 9 Ncm(12.75 oz.in)
• Rated Current/phase: 1.0 A
• Phase Resistance: 3.9 ohms
• Inductance: 2.0 mH 20%(1KHz)

Physical Specifications

• Frame Size: 36.5 x 36.5 mm
• Body Length: 17.5 mm
• Shaft Diameter: 2.5 mm
• Shaft Length: 4 mm
• Number of Leads: 4
• Lead Length: 500 mm
• Weight: 0.08 kg

Connection

Resources

• Motor Datasheet
