Key Features:

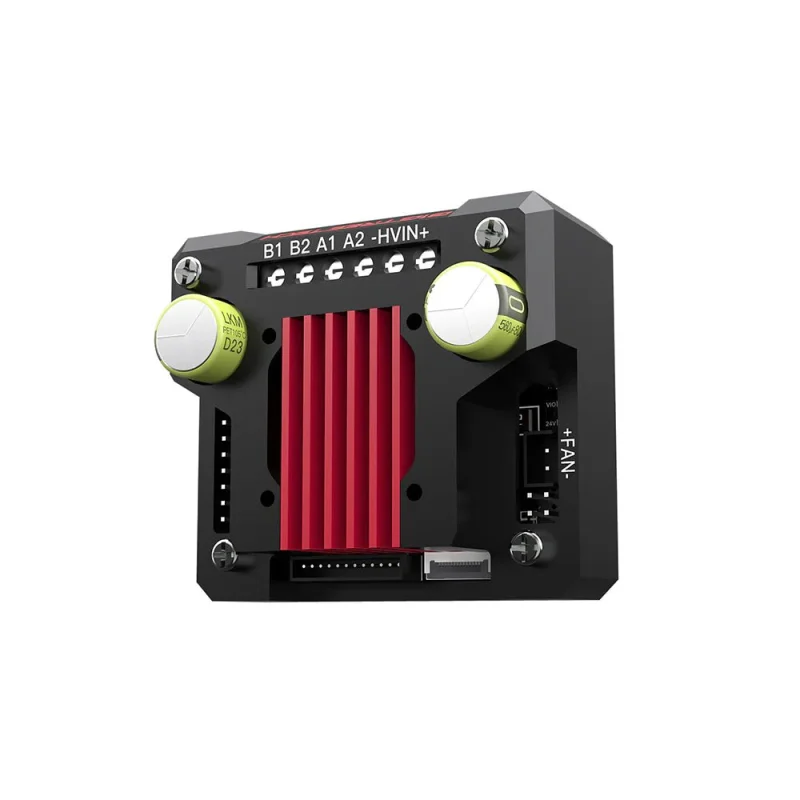

TMC5160T Plus is a high-power stepper motor driver control module, featuring 8 high-power MOSFETs separately mounted on the board with a maximum voltage of 60V. This supports a wider range of stepper motors and offers greater adaptability.

• 8 high-power MOSFETs separately mounted on the board with 100V voltage resistance, 93A current resistance, and equivalent resistance as low as 6m, significantly enhancing the drive’s performance
• Supports a maximum voltage of 60V, a maximum effective current (IRMS) of 10.6A, and a sine wave peak current of up to 15A
• StealthChop TM mode and SpreadCycleTM mode selectable, with standalone mode, UART mode, and SPI mode selectable
• Generates significantly less heat compared to other drives with the same chip model, and outperforms others on the market
• Can prevent motor jitter and avoid losing steps
• Tested to drive 36, 42, 57, 86, etc., stepper motors
• ESD protection on the drive power, logic power, etc., to prevent damage due to power fluctuations and static electricity
• On-board 24V always-on fan interface facilitates active cooling
• Encoder interface reserved for DIY usage
• Integrated heat sink design, providing high heat dissipation while enhancing structural integrity and aesthetics
• Supplied with adapters and wires for both standard drives and EZ drive, for user convenience
• Heat sink pre-designed with fan mounting holes for DIY fan installation.
