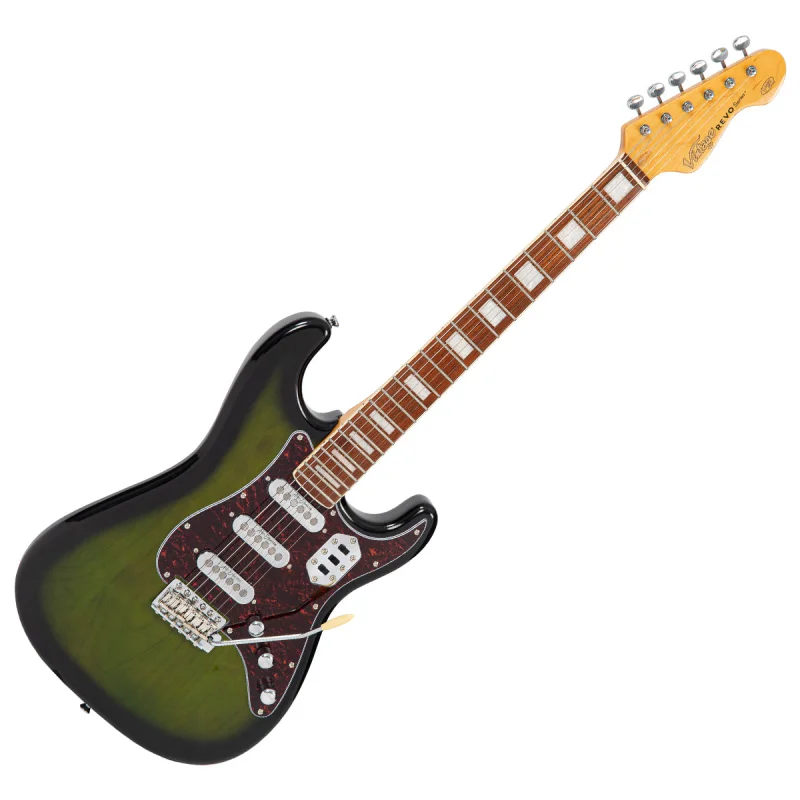

The REVO Deluxe itself, with a solid okoume body, maple neck and bound 22 fret jatoba fingerboard with block inlays, features separate on/off pickup slide switches and Entwistle circuitry that includes a variable bass and treble bleed system operable via Tone 1 and Tone 2 controls.

The Astrosonic vintage-inspired pickups feature 7.5mm Alnico V rod magnets, with power, dynamics and versatility, these low-noise Astrosonic pickups are renowned for their clarity and tone, with ample output to drive pedals whilst remaining clear and articulate.The Vintage Revo Deluxe is extremely versatile with the effortless ability to adapt to any style of music.

Hardware for the REVO Deluxe includes Wilkinson E-Z-Lok machine heads, Graphtech precision-cut nut and Wilkinson WVS vibrato.

Body: Vintage V6 shape – Okoume
Bridge: Wilkinson WVS
Neck: Maple
Fingerboard: Jatoba
Frets: 22 Jumbo Frets
Scale Length: 24.75″ / 628.65mm
Tuners: Wilkinson WJ55 E-Z-Lok
Pickups: 3 Entwistle Astrosonics
Controls:Volume, Tone 1 Variable Bass bleed, Tone 2 Variable Treble bleed. 3 ON/OFF pickup slide switches
Top Nut: GraphTech
Strings: Elixir

Download Control Instructions

Download REVO Brochure

The ‘Deluxe’is an original Vintage REVOSeries guitar, designed and created by theUK Vintage design teamandAlan Entwistle.
