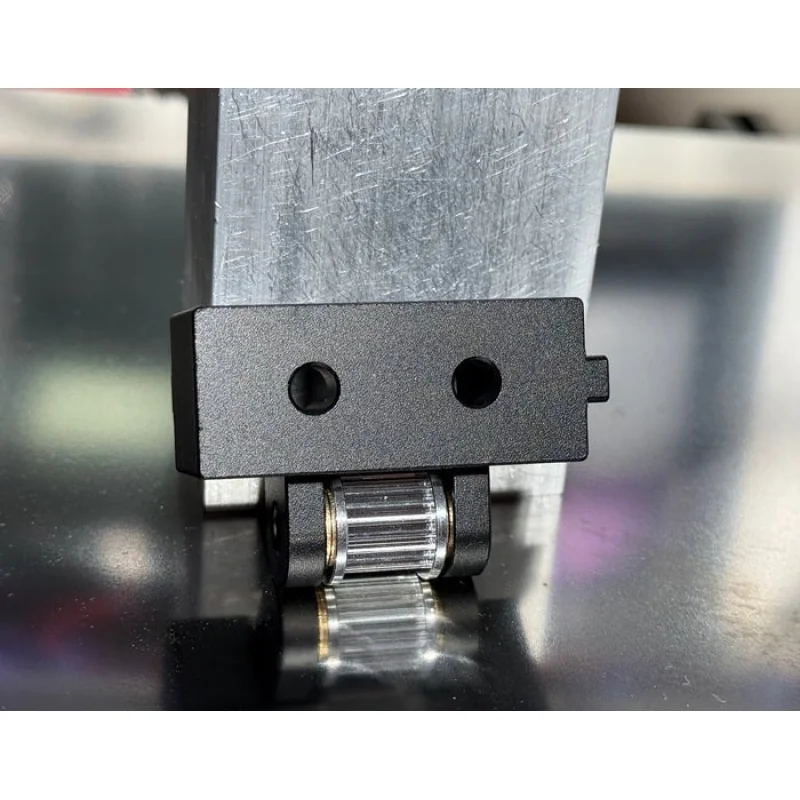

Rigid Z Tensiones are machined from 6061 aluminium making them a perfect choice to over tight Z belts. Tensioning forces are centered at the idler in this design.

• High quality 9mm idlers by Mellow
• Stainless steel pin

Compatibility

• 9mm Z Belts
• Voron V2.4
• Require access from the top to tension the belts

Contents

• Preassembled 4 Z Tensioners
• 8 BHSCS M5x25mm bolts
